The Galaxy is our aluminium amenity luminaire ideal for a range of interior applications. The housing is fully manufactured here in the UK with a high quality polycarbonate diffuser. The Galaxy is available in a range of finishes and sizes to suit application requirements.
TP(a)
850 Glow-wire
UV Stabilized
Impact modified polycarbonate diffuser
Available with our high-performance Lumaax TM Diffuser
Springs to fit diffuser included

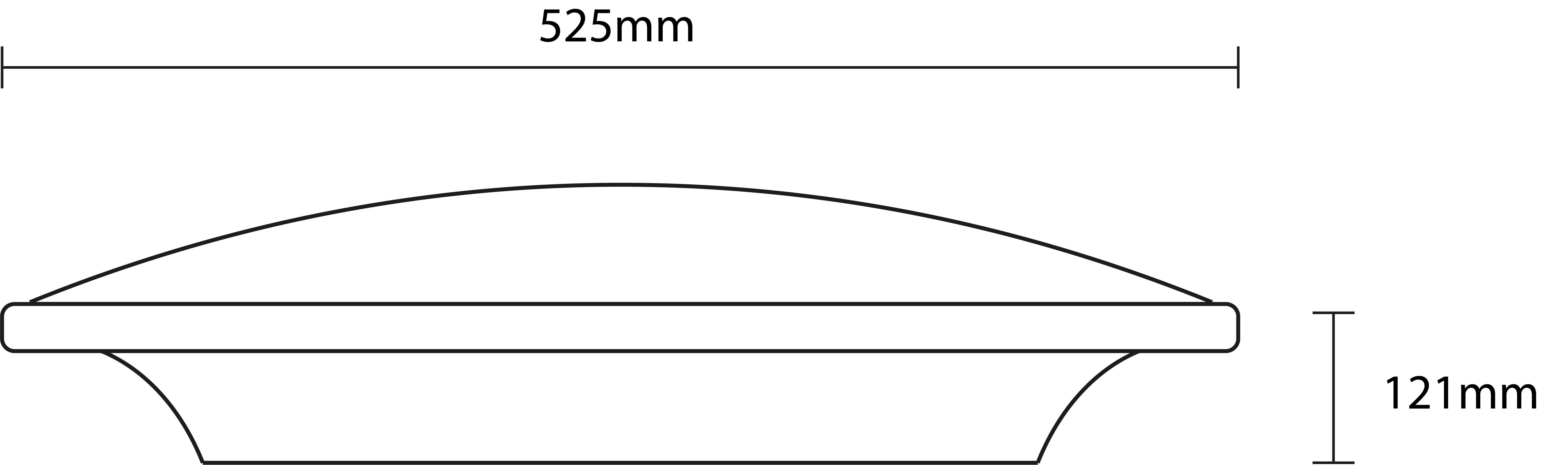

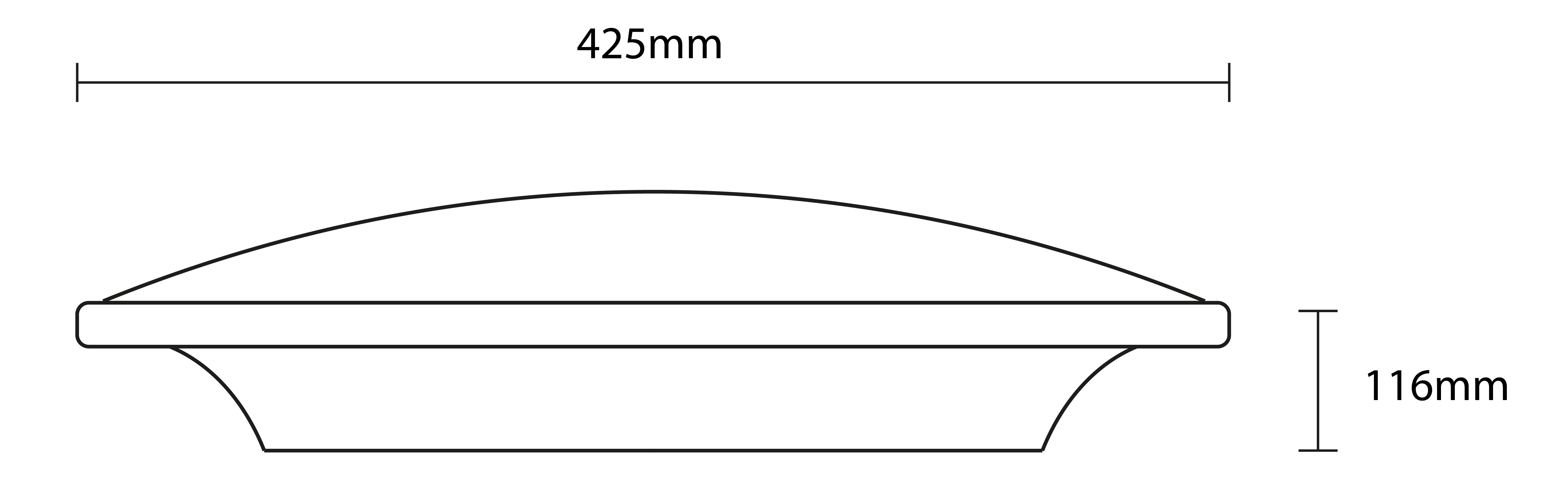

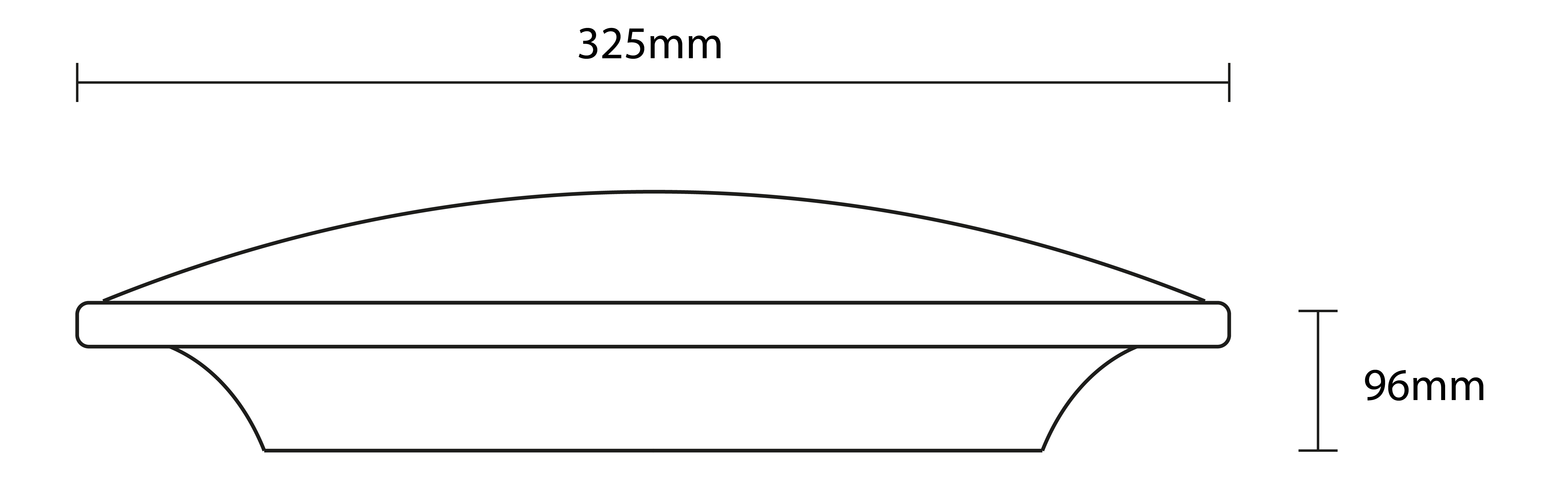

Available in 325, 425 and 525mm size options
Brackets are available upon request to semi recess the Enclosure into the wall or ceiling
TRANSMISSION RATE
(Tested with Tridonic components)
TP(a)
850 Glow-wire
Galaxy
The Galaxy is our aluminium amenity luminaire ideal for a range of interior applications. The housing is fully manufactured here in the UK with a high quality polycarbonate diffuser. The Galaxy is available in a range of finishes and sizes to suit application requirements.
TP(a)
850 Glowwire
IP20
UV Stabilized
Aluminium base
Impact modified polycarbonate base and diffuser
Available with our high performance Lumaax TM Diffuser
Springs to fit diffuser included
Available in 325, 425 and 525mm size options
Brackets are available upon request to semi recess the Enclosure into the wall or ceiling
Our Galaxy has been tested by the Lighting Industry Association to ensure it’s compliance with BS EN60598. As a TP(a) rated enclosure, the Galaxy can be used in escape area’s as an emergency luminaire, with certification available for your technical files upon request.
| Product | Part Codes |
|---|---|
| Galaxy 325 | White | Lumaax

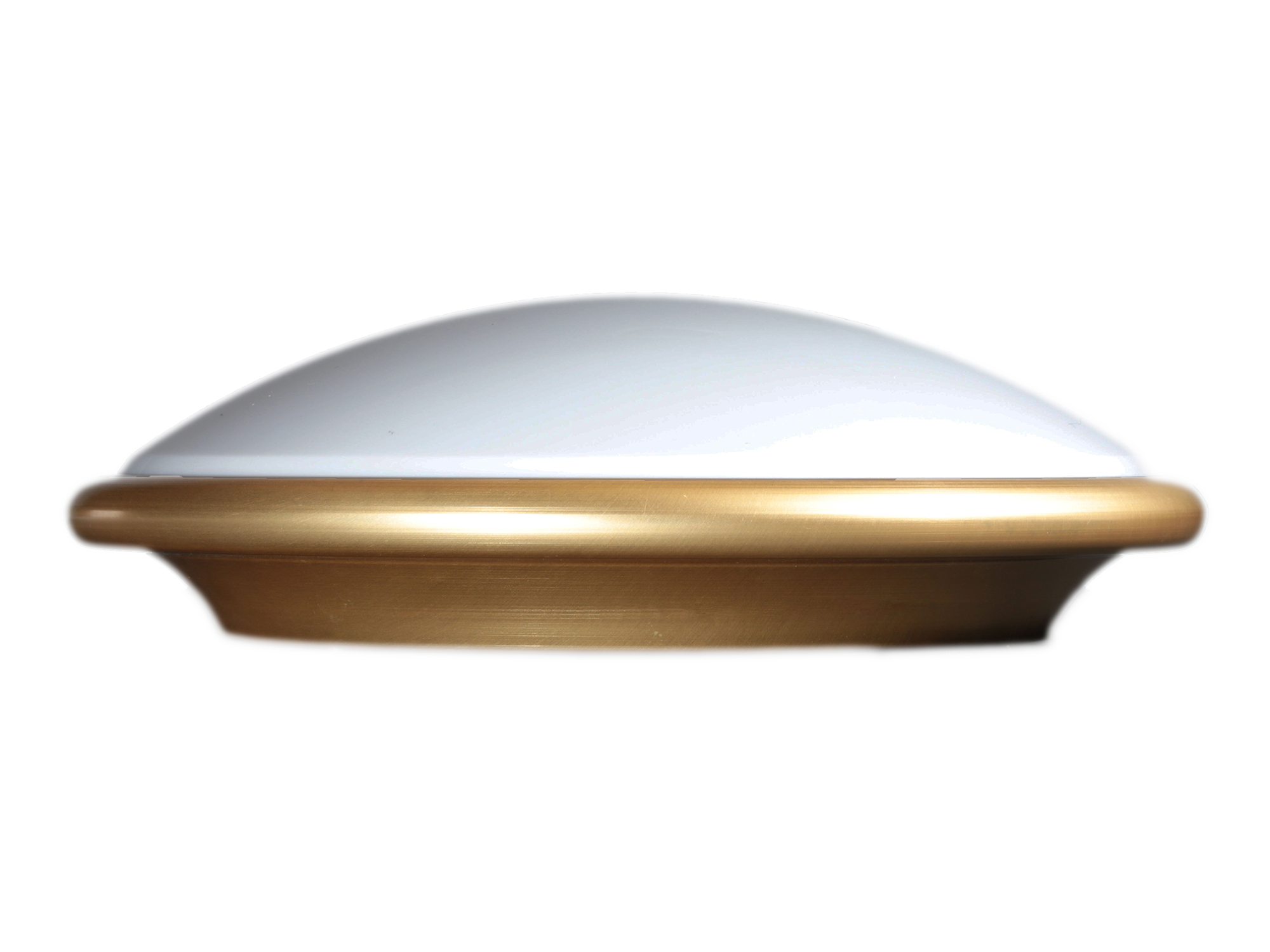

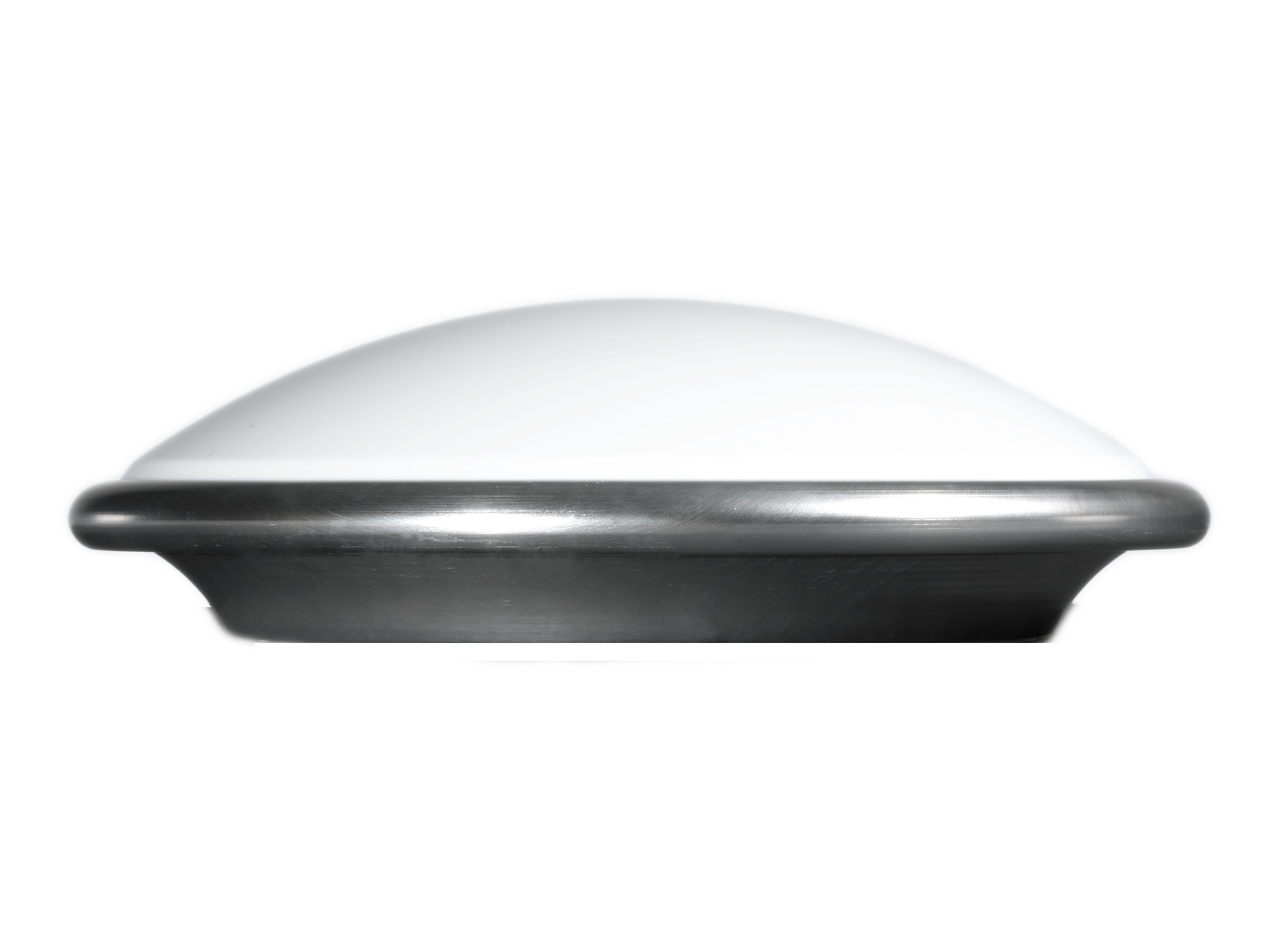

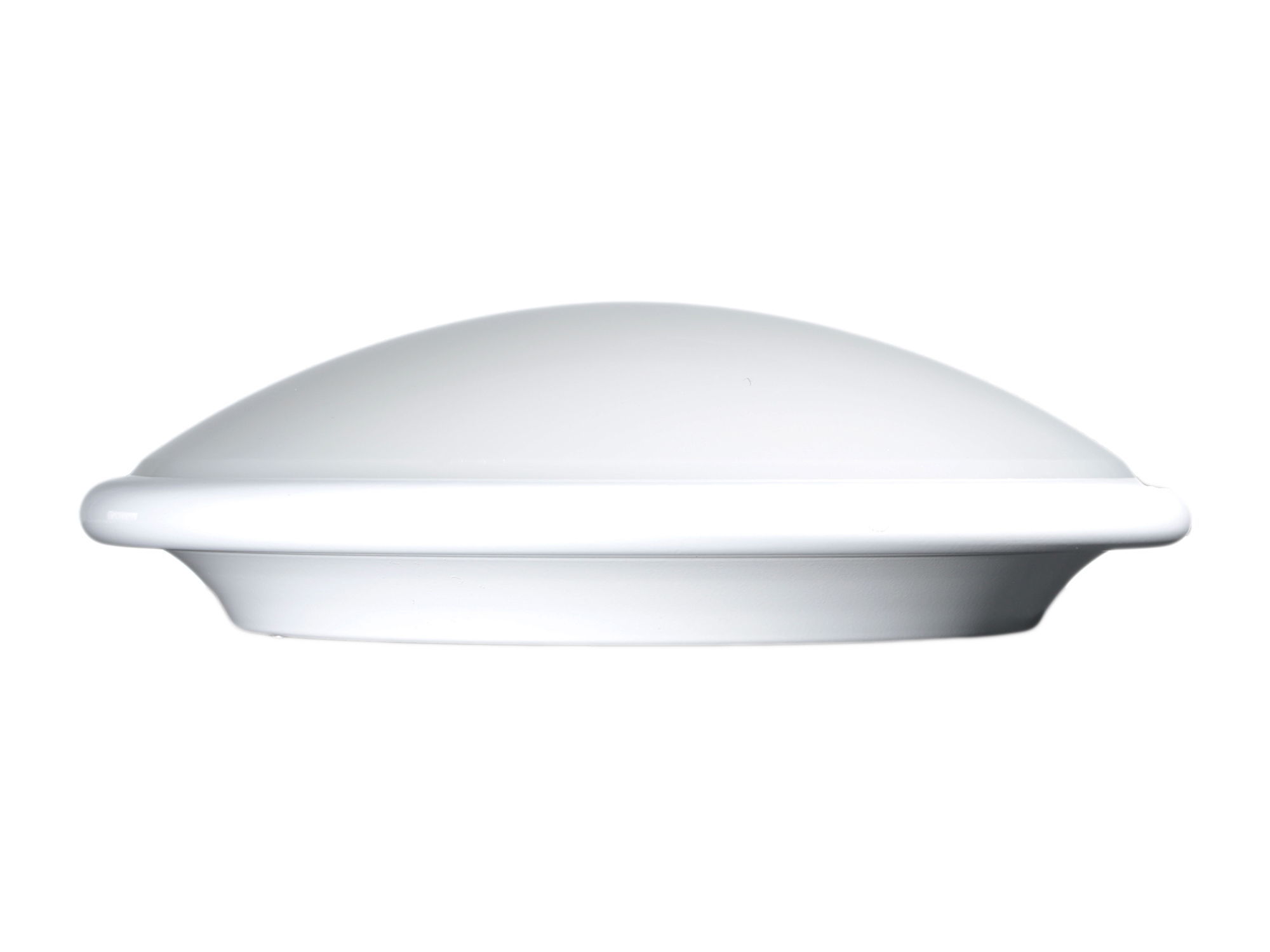

Galaxy 325 | Anodised Brass | Lumaax Galaxy 325 | Anodised Chrome | Lumaax Galaxy 425 | White | Lumaax Galaxy 425 | Anodised Brass | Lumaax Galaxy 425 | Anodised Chrome | Lumaax Galaxy 525 | White | Lumaax Galaxy 525 | Anodised Brass | Lumaax Galaxy 525 | Anodised Chrome | Lumaax |
GAL-325-W-L
GAL-325-BR-L GAL-325-CH-L GAL-425-W-L GAL-425-BR-L GAL-425-CH-L GAL-525-W-L GAL-525-BR-L GAL-525-CH-L |
Our Lumaax is the highest performing diffuser on the market in comparison to the competition. When compared to the market standard opal, the Lumaax offers up to a 92% increase in Light Output Ratio in addition to the superior light diffusion. Together with the elimination of hotspots and glare caused by the LED boards, the diffuser subsequently increases the application range available for our enclosures. In addition to the reduction of dangerous glare, the Lumaax enables our customers to reduce their circuit watts as a result of its superior performance.
TRANSMISSION RATE
(Tested with Tridonic components)
Luminaire Assembly Service
Here at Penhale Quantock Ltd, we offer a luminaire assembly service to our customers. In addition to supplying our products as empty housings, our team can assemble the enclosures into filled luminaires. Moreover, we can assemble your luminaire’s straight from the machine, with your components, to your specification.
As members of the LIA, you can be assured that our production processes, together with our quality management system, have been designed to ensure the products you receive are of the highest quality.
