Midilite

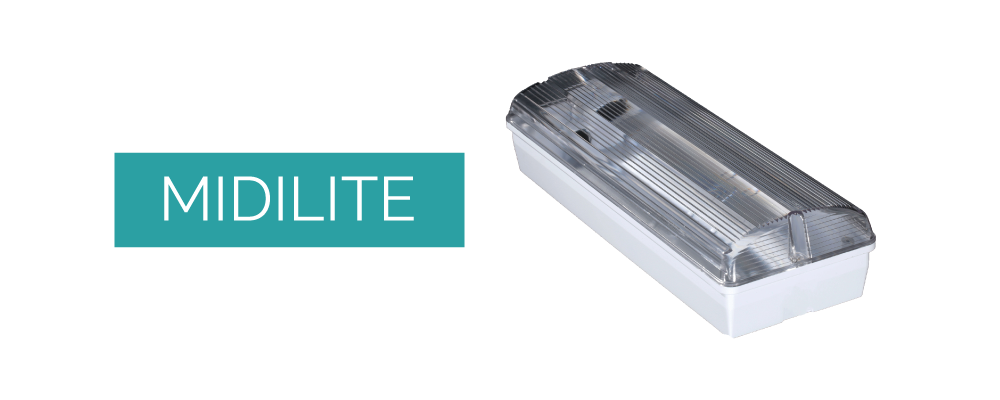

The Midilite is our IP66, IK10, emergency bulkhead ideal for a range of interior and exterior applications. The housing is fully manufactured here in the UK using high quality polycarbonate.

  • TP(a)

  • 850 Glow-wire

  • IP66

  • IK10

  • UV Stabilized

  • Hinged geat tray for easy maintenance

  • Impact modified polycarbonate base & diffuser

  • Available with our high performance Lumaax Diffuser

  • Screw fixed diffuser allows for anti-tamper screws

  • 2x16mm conduit entry points

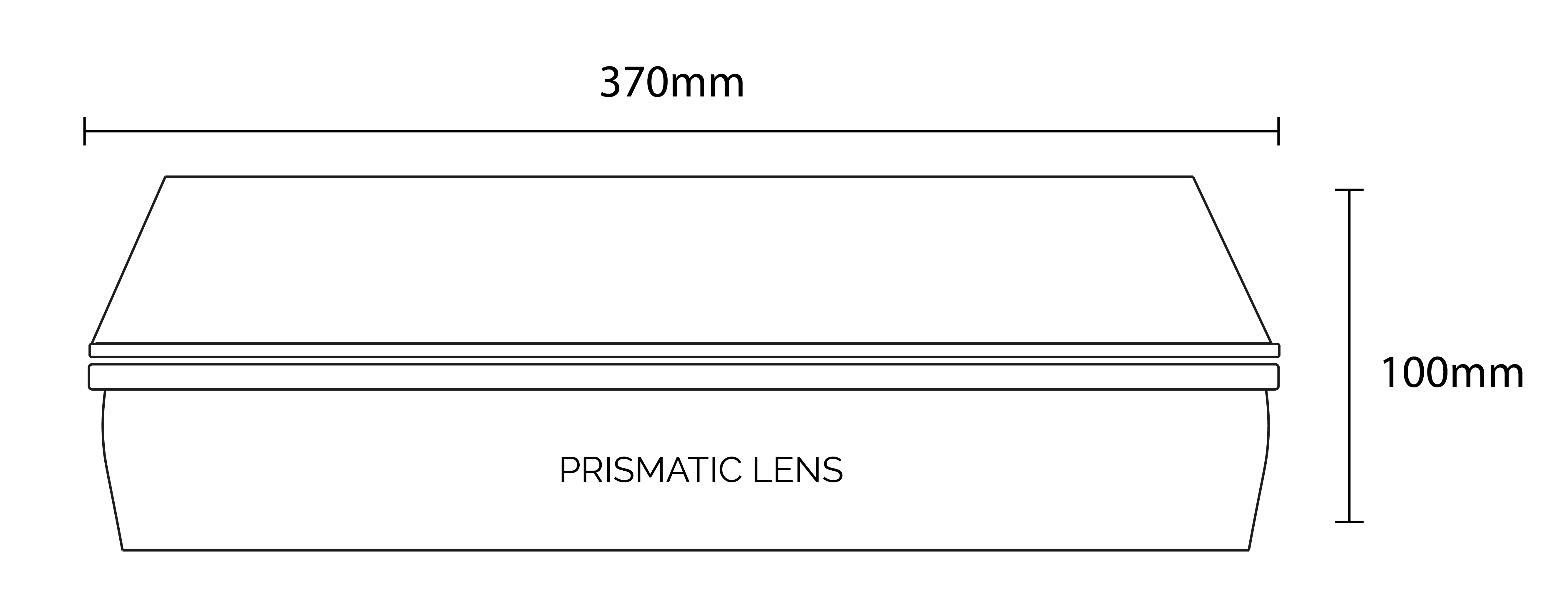

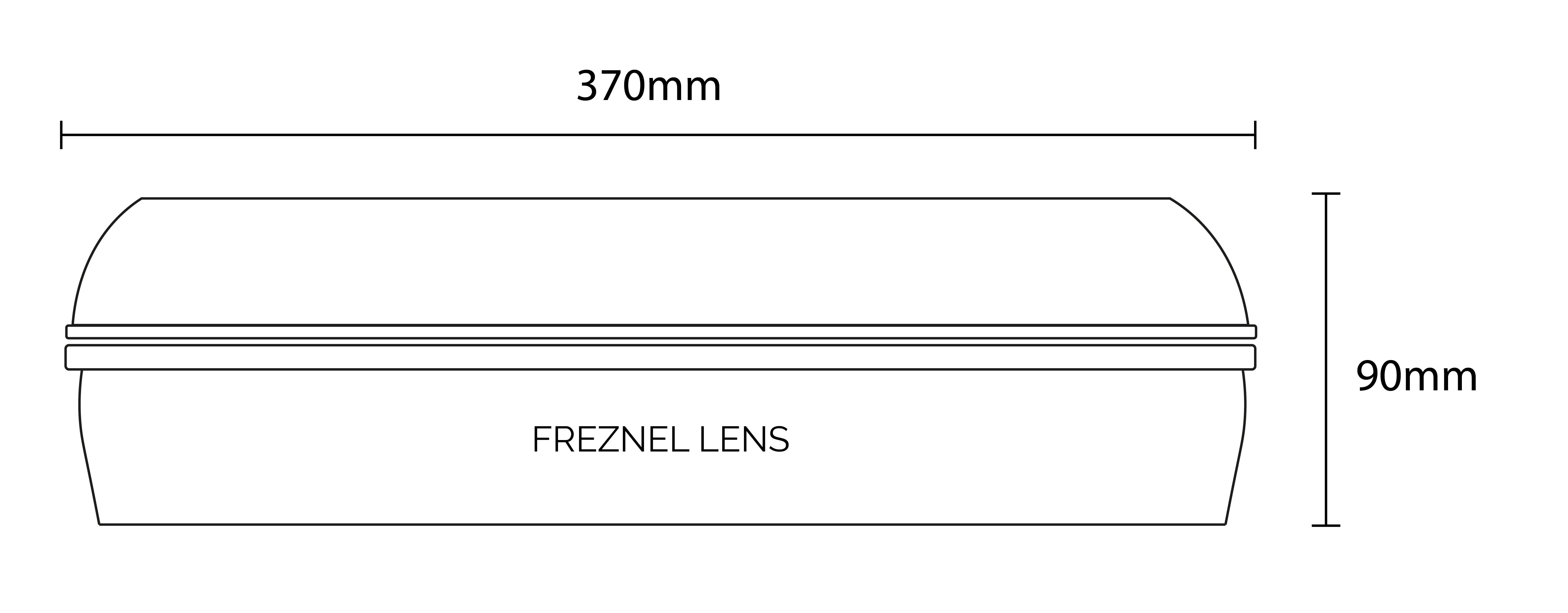

  • Available with a prismatic diffuser, ideal for the running man sticker or our freznel lens with unrivalled light distribution

Data Sheet. pdf

Our Isis has been tested by the Lighting Industry Association to ensure it’s compliance with BS EN60598. As a TP(a) rated enclosure, the Isis can be used in escape area’s as an emergency luminaire, with certification available for your technical files upon request.

Product Part Code
Midilite White Base

Freznel Clear

Freznel Lumaax TM

Prismatic Clear

Prismatic Lumaax TM

Midilite Black Base

Midilite Seal

Midilite Gear Tray

PH800

PH847

PH850

PH6221

PH6224

PH801

SEAL

17788/3

The Midilite is our IP66, IK10, emergency bulkhead ideal for a range of interior and exterior applications. The housing is fully manufactured here in the UK using high quality polycarbonate.

  • TP(a)

  • 850 Glow-wire

  • IP66

  • IK10

  • UV Stabilized

  • Hinged geat tray for easy maintenance

  • Impact modified polycarbonate base & diffuser

  • Available with our high performance Lumaax Diffuser

  • Screw fixed diffuser allows for anti-tamper screws

  • 2x16mm conduit entry points

  • Available with a prismatic diffuser, ideal for the running man sticker or our freznel lens with unrivalled light distribution

Our Isis has been tested by the Lighting Industry Association to ensure it’s compliance with BS EN60598. As a TP(a) rated enclosure, the Isis can be used in escape area’s as an emergency luminaire, with certification available for your technical files upon request.

Product
Midilite White Base

PH800

Freznel Clear

PH847

Freznel Lumaax TM

PH850

Prismatic Clear

PH6221

Prismatic Lumaax TM

PH6224

Midilite Black Base

PH801

Midilite Seal

SEAL

Midilite Gear Tray

17788/3

Luminaire Assembly Service

Looking to reduce your overheads or internal processing? Find out more about how our luminaire assembly service can help your business.

More Info

Luminaire Assembly Service

Looking to reduce your overheads or internal processing? Find out more about how our luminaire assembly service can help your business.

More Info

The Lumaax is the highest performing diffuser on the market, developed in house by our expert injection moulding division. When compared to the market standard opal, the Lumaax offers up to a 92% increase in Light Output Ratio. The diffuser also eliminates the “hot – spot” or “glare” caused by the LED boards, increasing the application range for our enclosures.

Don’t be fooled by its yellow-ish appearance, once lit the Lumaax comes to life. Such is the performance of the Lumaax,  many of our customers are able to reduce the circuit watts of their enclosure’s and still achieve the desired light output ratio (LOR). The diffuser helps provide long term energy saving capabilities and increases the efficiency of our enclosure’s.

80%

TRANSMISSION RATE

(Average Performance)

Performance Comparison

The Lumaax is the highest performing diffuser on the market, developed in house by our expert injection moulding division. When compared to the market standard opal, the Lumaax offers up to a 92% increase in Light Output Ratio. The diffuser also eliminates the “hot – spot” or “glare” caused by the LED boards, increasing the application range for our enclosures.

Don’t be fooled by its yellow-ish appearance, once lit the Lumaax comes to life. Such is the performance of the Lumaax,  many of our customers are able to reduce the circuit watts of their enclosure’s and still achieve the desired light output ratio (LOR). The diffuser helps provide long term energy saving capabilities and increases the efficiency of our enclosure’s.

80%

TRANSMISSION RATE

(Average Performance)
