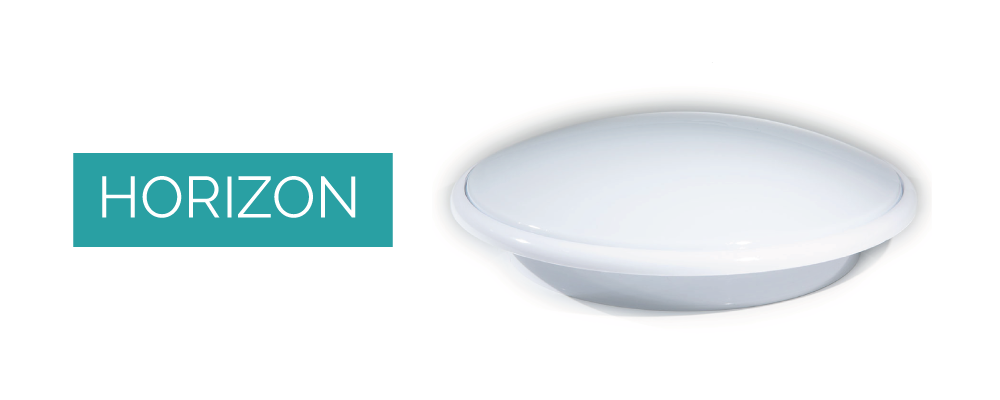

The Horizon is our 425mm amenity luminaire ideal for a range of interior applications in particular. The housing is fully manufactured here in the UK using high quality polycarbonate. In addtition, the Horizon available with a range of decorative trim options as well as the ability to vacuum metallize the rim or base.
TP(a)
850 Glow-wire
IP20
IK10
UV Stabilized
2 x 20mm conduit entry points
Impact modified polycarbonate base, diffuser and bezel
Available with our high performance Lumaax TM Diffuser

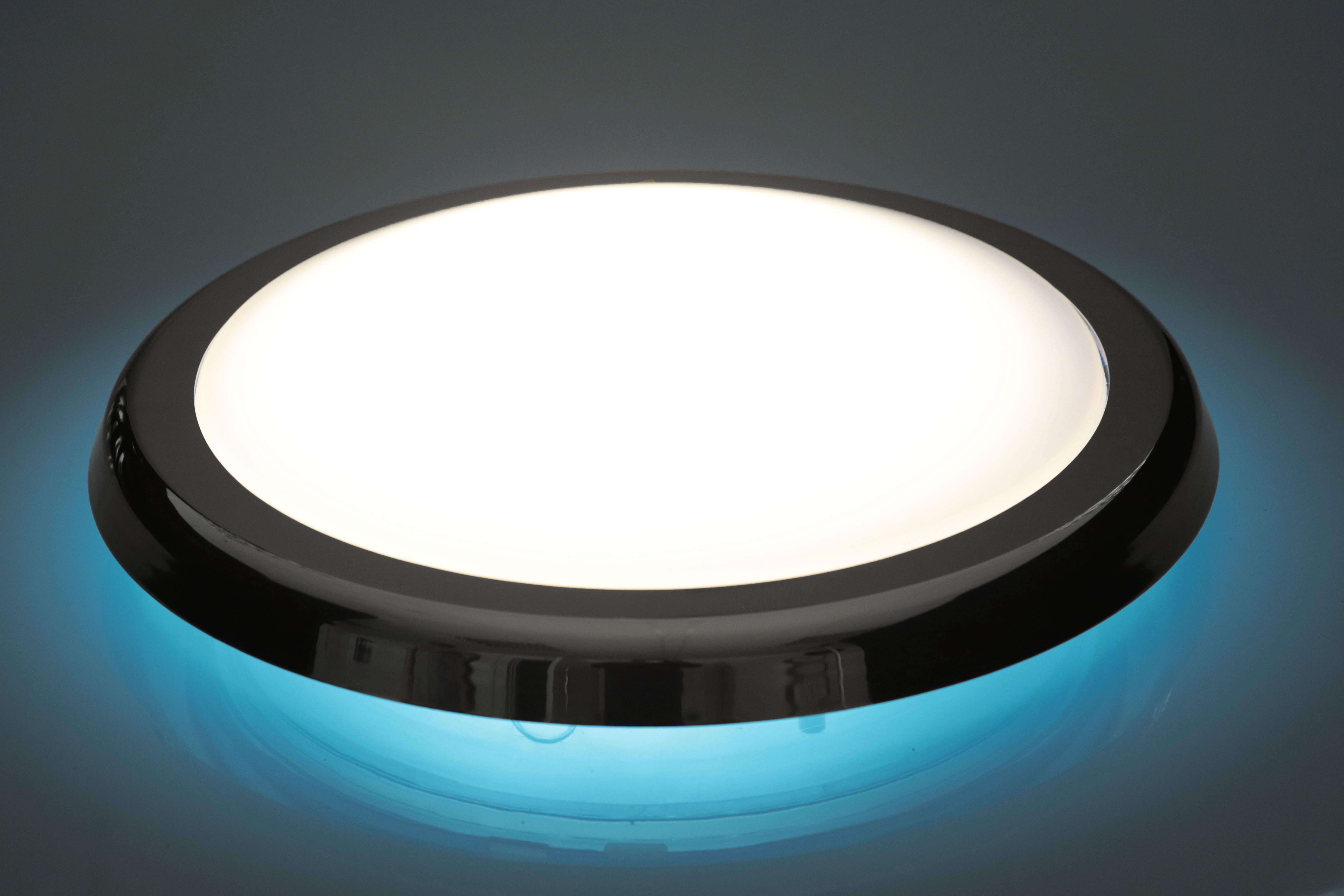

Halo Effect

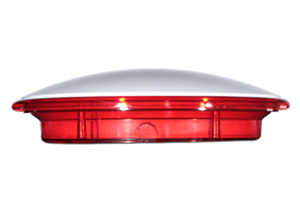

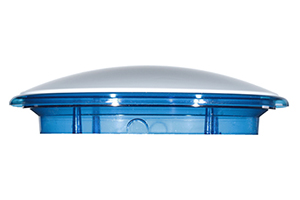

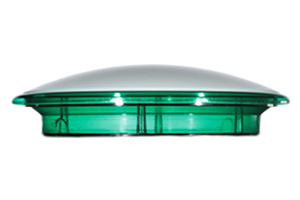

Our Horizon is available with a decorative halo backlit effect to transform the look of the luminaire. The feature comes in a range of colours to suit application requirements and is ideal for matching company colour schemes within buildings.
Decorative Trims
Our Horizon is available with three decorative trims, transforming the look of the enclosure and providing the appearance of an expensive metal enclosure without the high cost. All trims are available in a range finishes to suit application requirments and clip securly onto our Horizon bases.

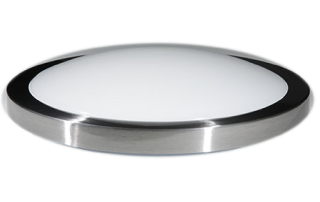

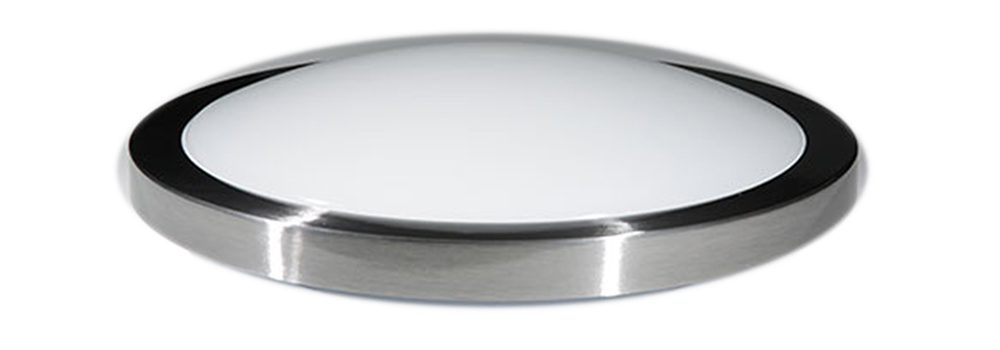

Tamar

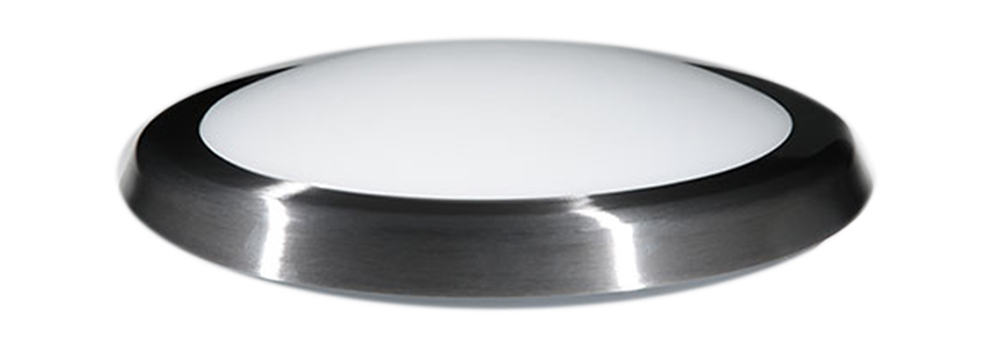

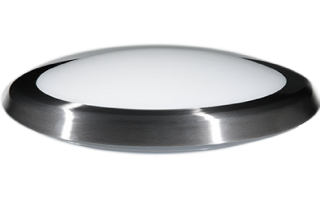

Derwent

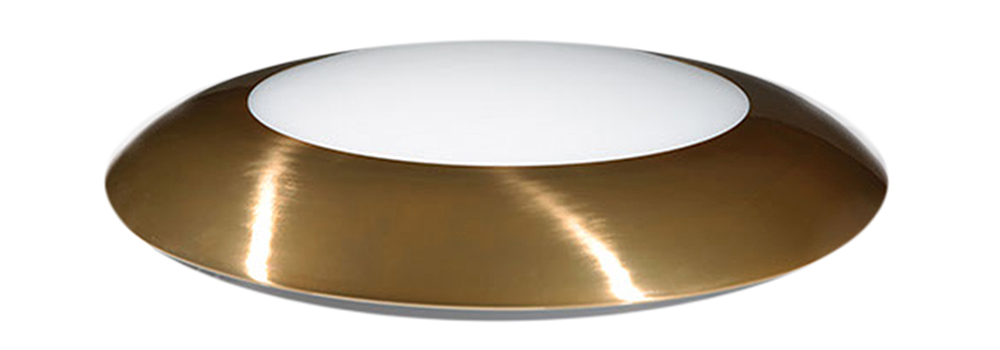

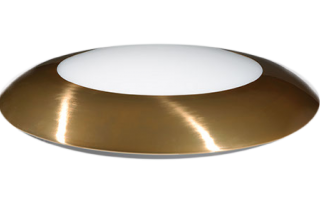

Thames
TRANSMISSION RATE
(Tested with Tridonic components)
TP(a)
850 Glow-wire
Horizon
The Horizon is our 425mm amenity luminaire ideal for a range of interior applications in particular. The housing is fully manufactured here in the UK using high quality polycarbonate. In addtition, the Horizon available with a range of decorative trim options as well as the ability to vacuum metallize the rim or base.
TP(a)
850 Glowwire
IP20
UV Stabilized
2 x 20mm conduit entry points

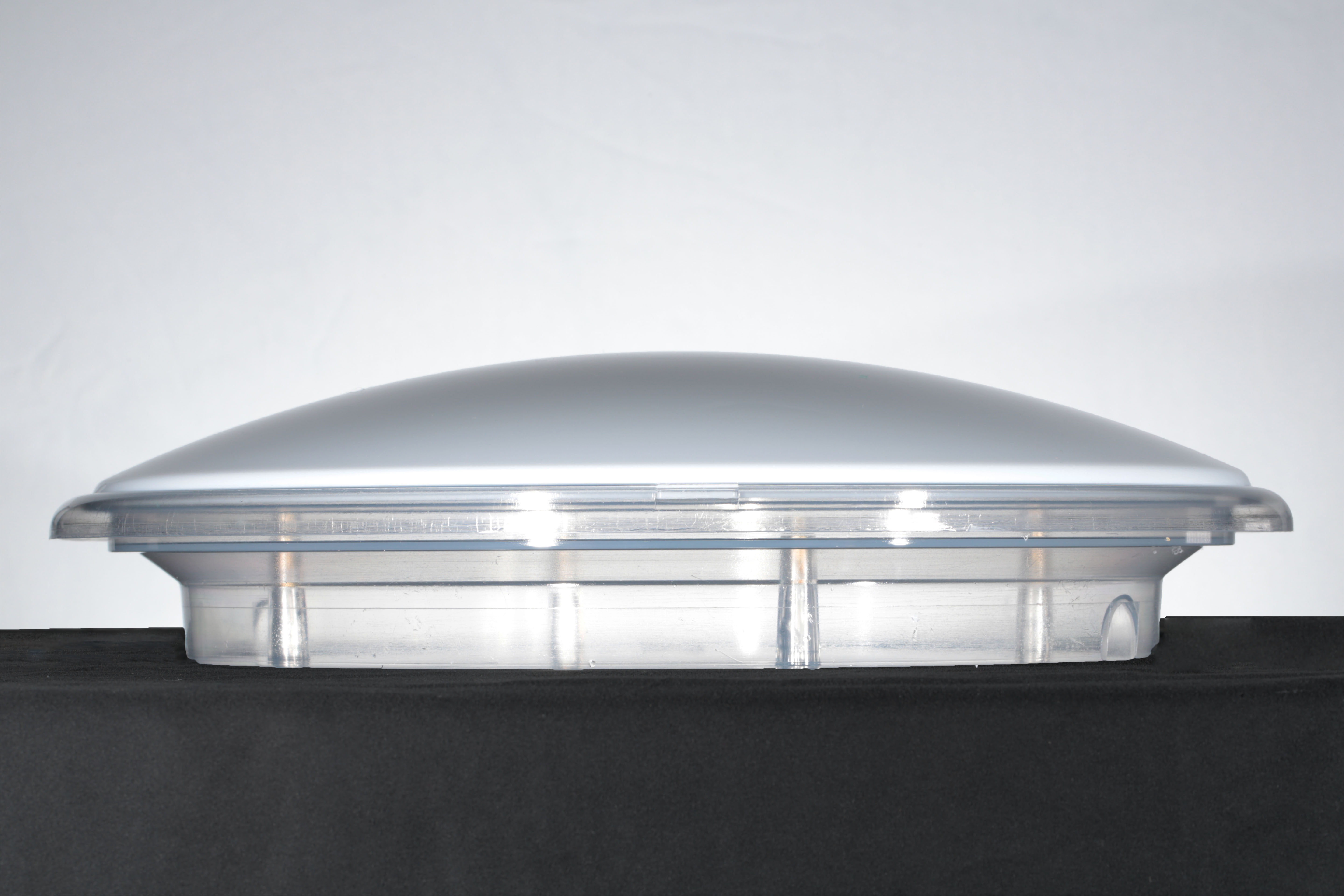

Impact modified polycarbonate base and diffuser
Available with our high performance Lumaax TM Diffuser
Fixing tabs on the diffuser helps it to locate into the base, prevents ‘slipping’, and ensures no damage is inflicted during maintenance.

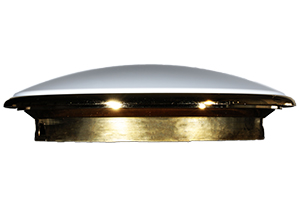

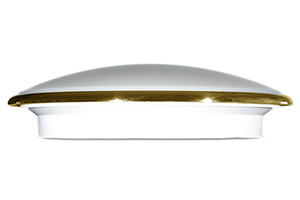

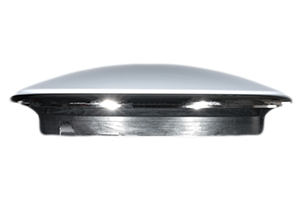

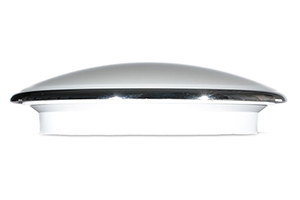

Ability to metallize the rim and the base will give the look of a metal enclosure without the high cost
Range of decorative trims available to transform the look of the enclosure
Our Horizon has been tested by the Lighting Industry Association to ensure it’s compliance with BS EN60598. As a TP(a) rated enclosure, the Horizon can be used in escape area’s as an emergency luminaire, with certification available for your technical files upon request.

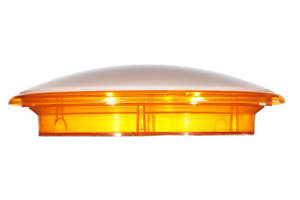

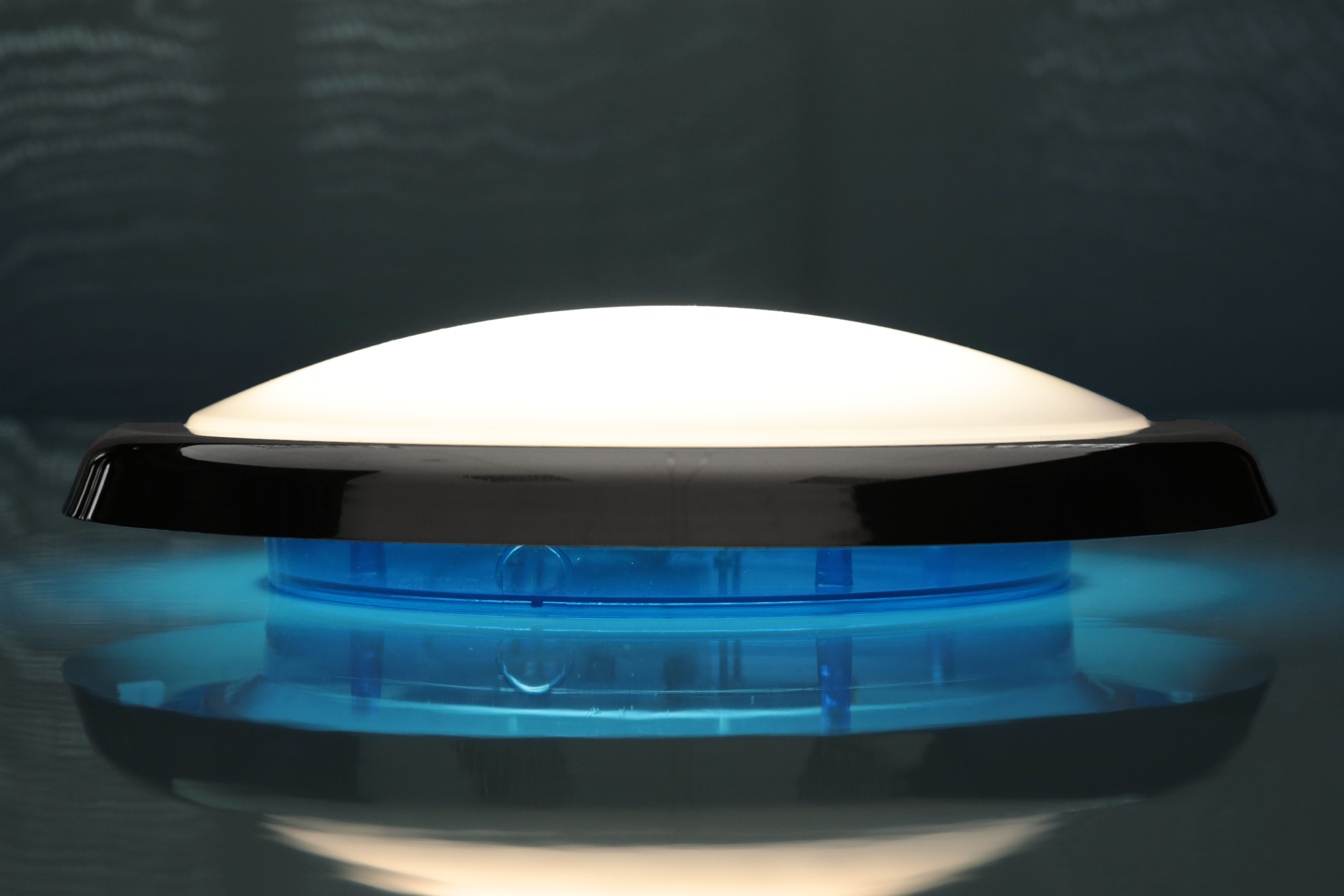

Horizon Halo

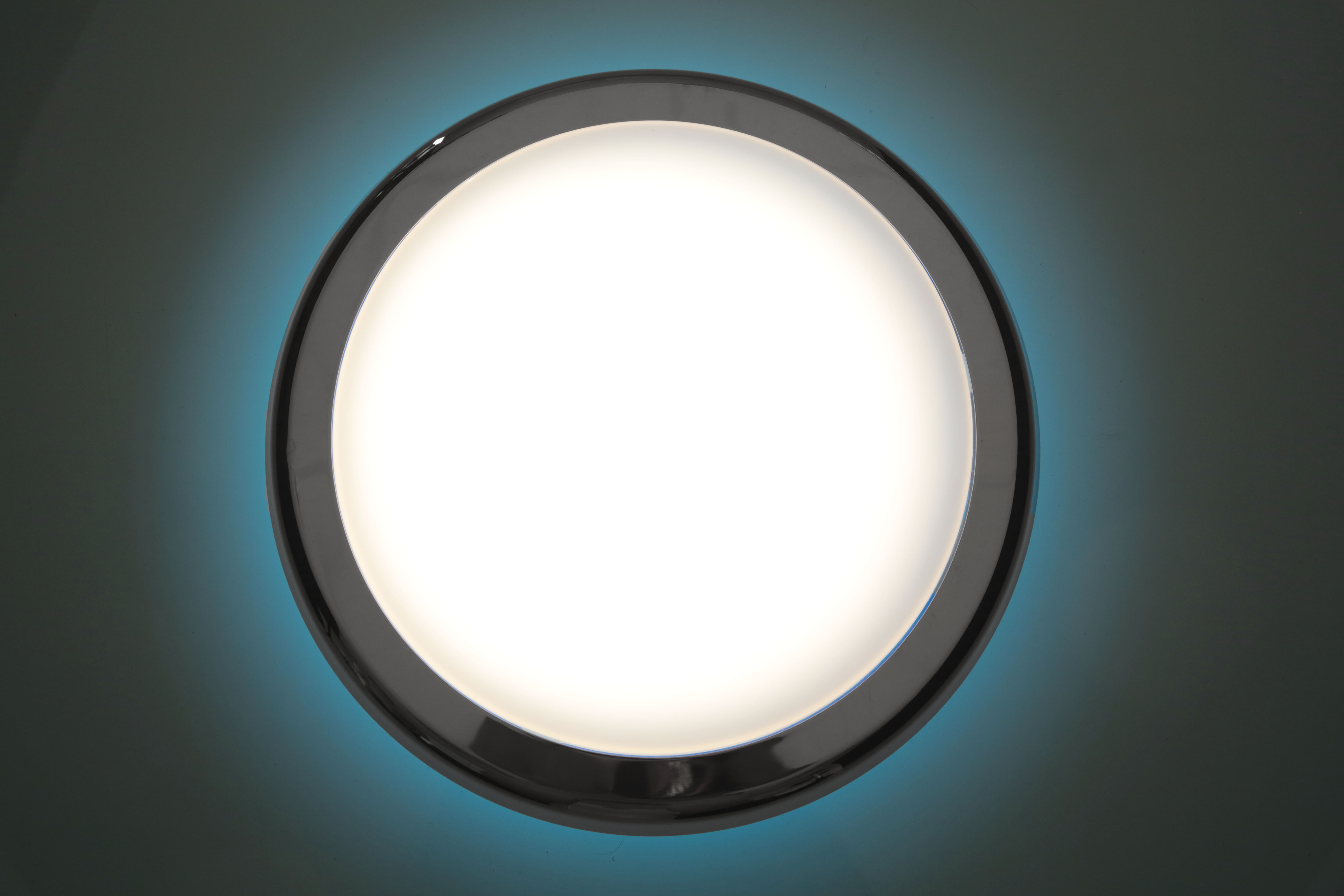

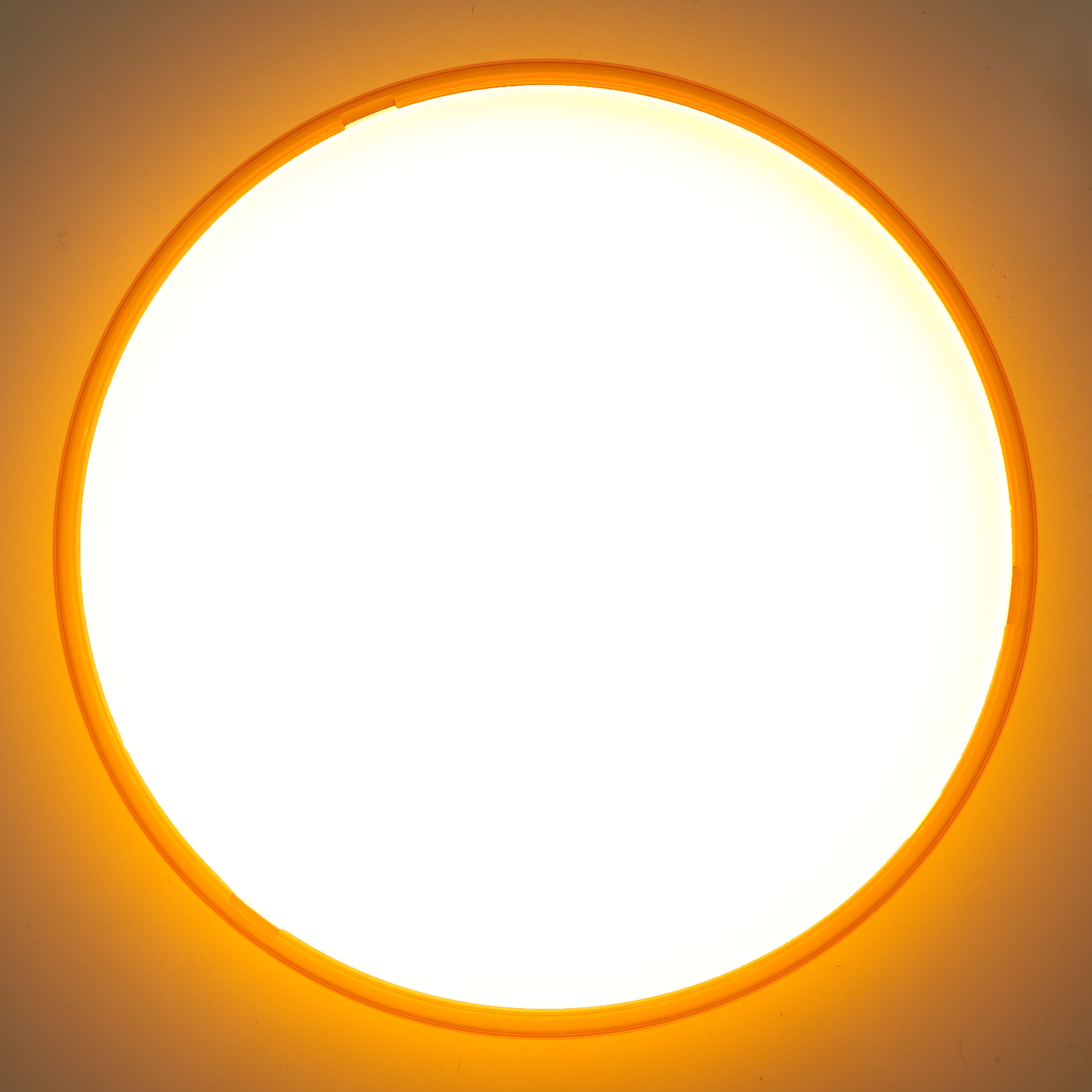

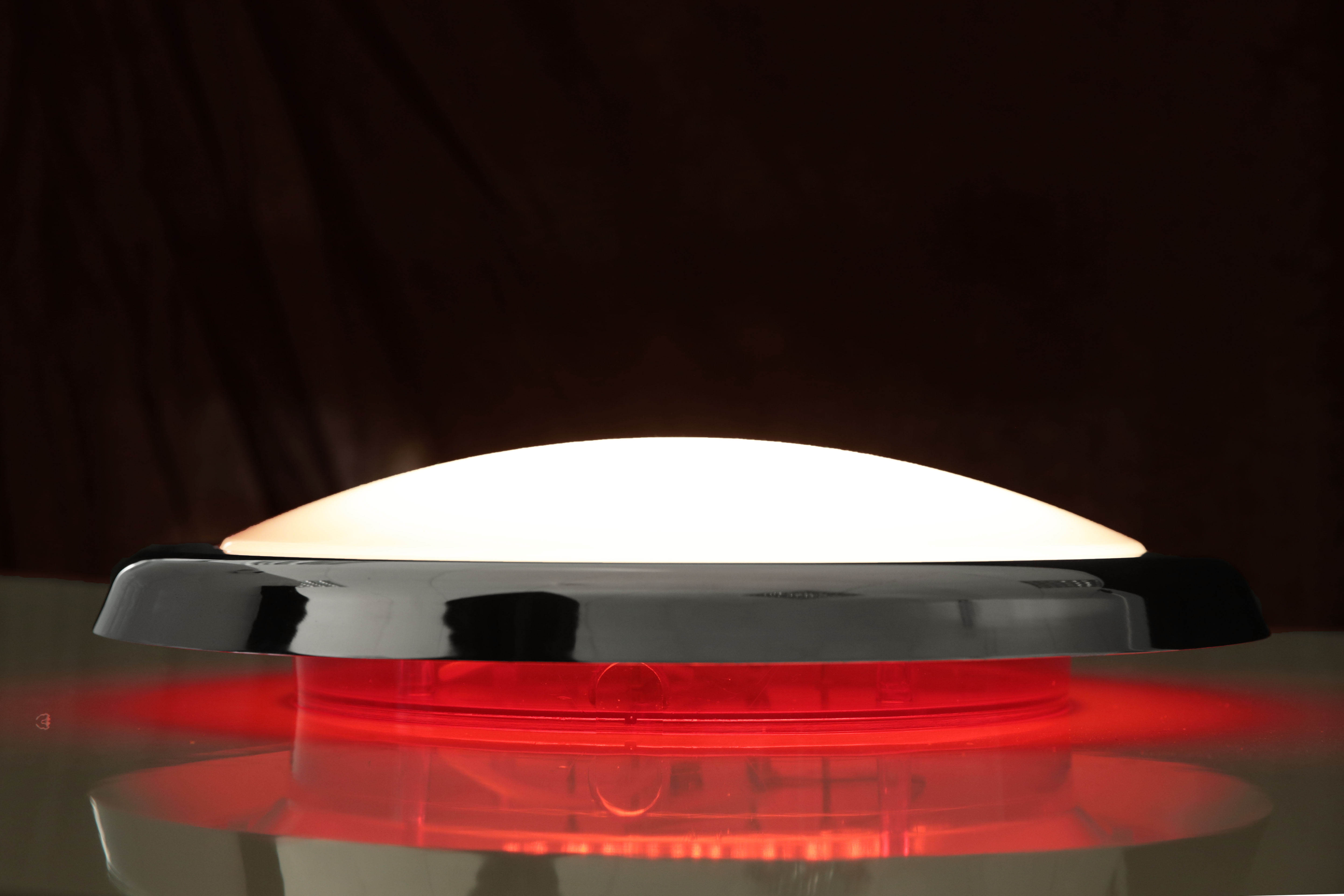

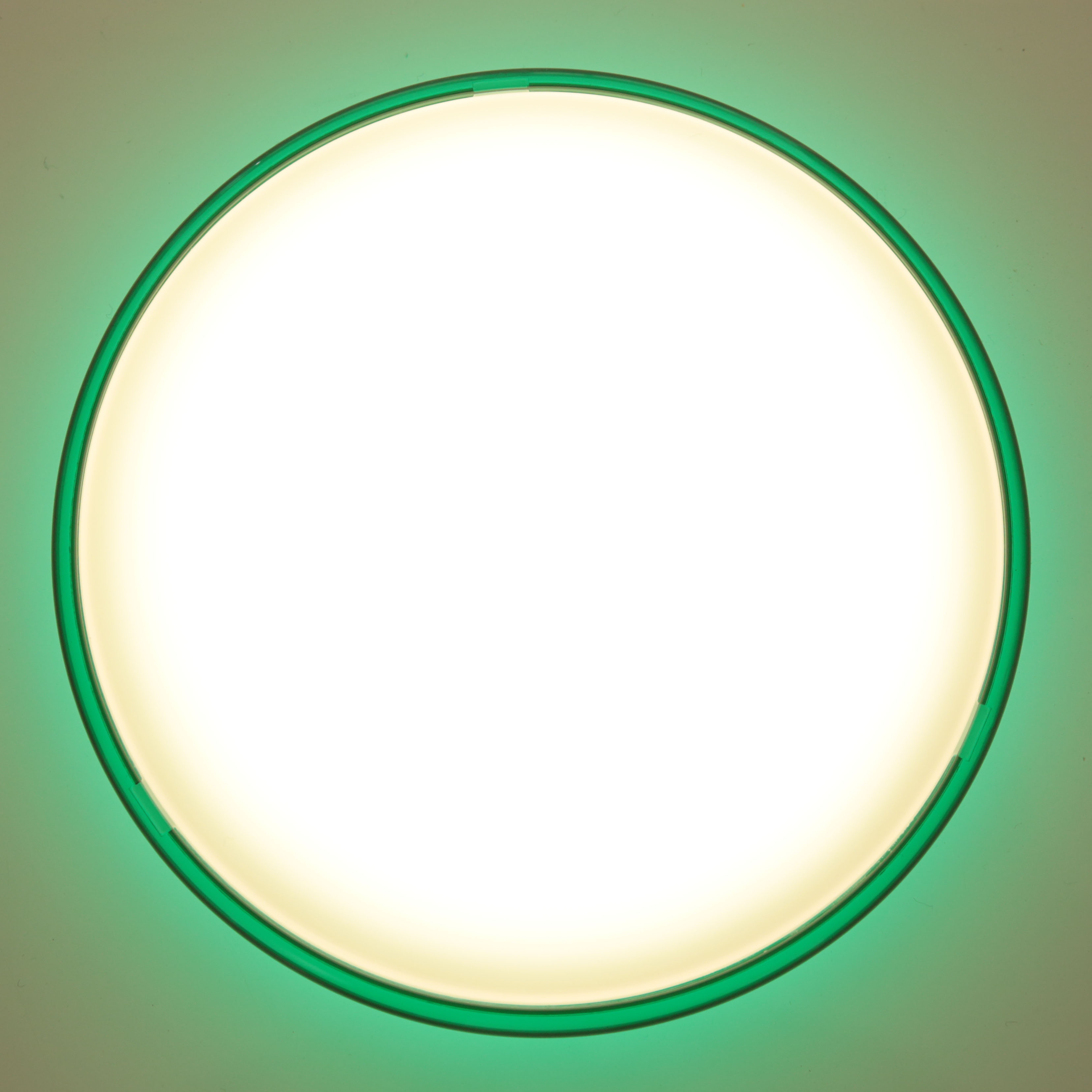

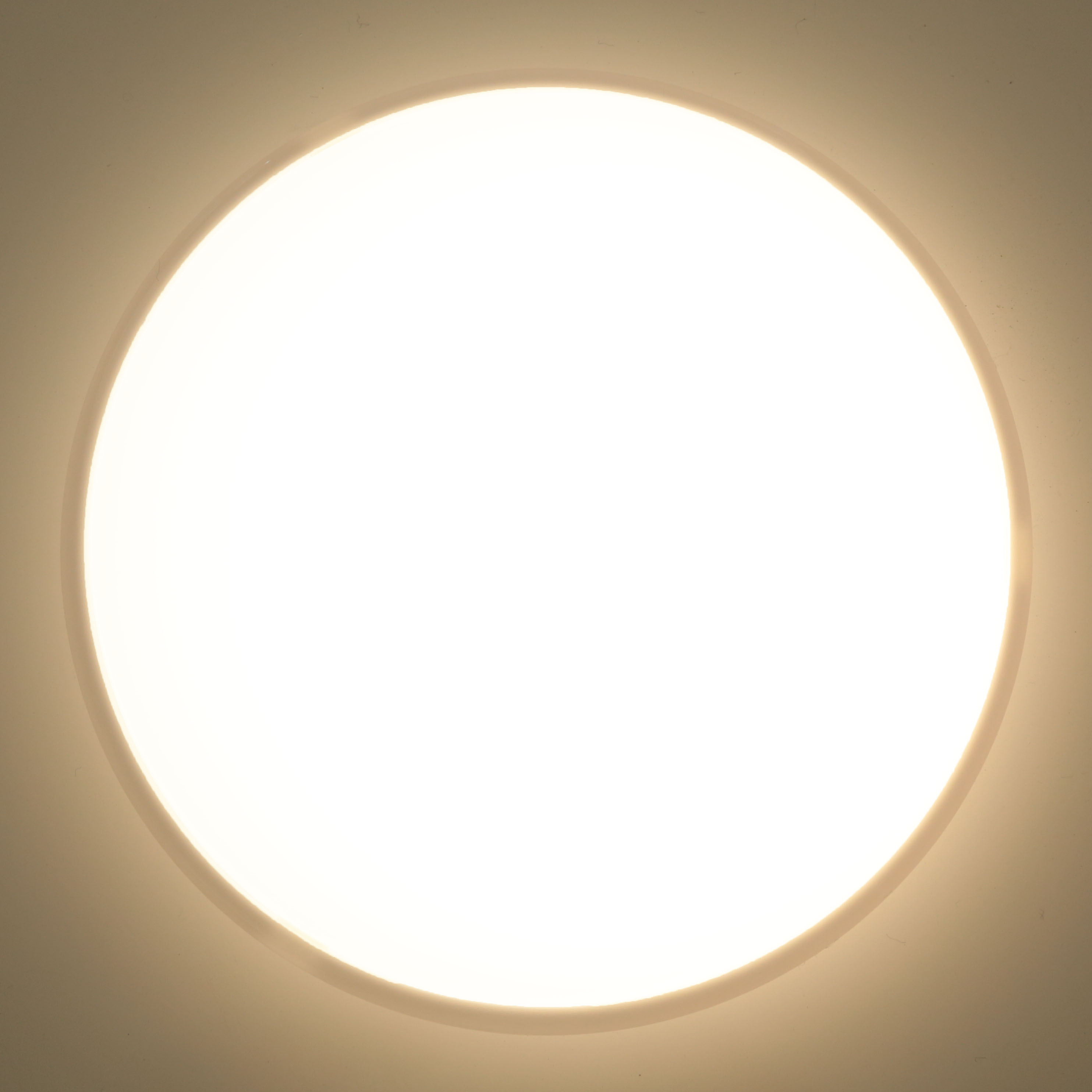

Our Horizon is available with a decorative halo backlit effect to transform the look of the luminaire. The feature comes in a range of colours to suit application requirements and is ideal for matching company colour schemes within buildings.
Decorative Trims
Our Horizon is available with three decorative trims, transforming the look of the enclosure and providing the appearance of an expensive metal enclosure without the high cost. All trims are available in a range finishes to suit application requirments and clip securly onto our Horizon bases.
Tamar Derwent Thames
Available Finishes
White
Satin Silver
Anodised Chrome
Anodised Brass
| Product | Part Codes |
|---|---|
|
Horizon White | Lumaax TM Horizon White | Clear Prismatic Horizon Chrome | Lumaax TM Horizon Chrome | Clear Prismatic Horizon Brass | Lumaax TM Horizon Brass | Clear Prismatic Horizon Chrome Rim | Lumaax TM Horizon Chrome Rim | Clear Prismatic Horizon Brass Rim | Lumaax TM Horizon Brass Rim | Clear Prismatic Halo White | Lummax TM Halo White | Clear Prismatic Halo Clear | Lumaax TM Halo Clear | Clear Prismatic Halo Blue | Lumaax TM Halo Blue | Clear Prismatic Halo Red | Lumaax TM Halo Red | Clear Prismatic Halo Green | Lumaax TM Halo Green | Clear Prismatic Square pre coated white steel 200m Square w/ 10mm depressed centre Circular pre coated white steel 300mm Circular w/ 10mm depressed centre Recess brackets for Horizon Base Derwent | White Derwent | Satin Silver Derwent | Chrome (Shiny) Derwent | Anodised Brass Tamar | White Tamar | Satin Silver (Lacquered) Tamar | Chrome (Shiny) Tamar | Anodised Brass Thames | White Thames | Satin Silver (Lacquered) Thames | Chrome (Shiny) Thames | Anodised Brass |
HOR-W-L HOR-W-P HOR-CH-L HOR-CH-P HOR-B-L HOR-B-P HOR-CH-RIM-L HOR-CH-RIM-P HOR-BR-RIM-L HOR-BR-RIM-P HOR-HALO-W-L HOR-HALO-W-C HOR-HALO-C-L HOR-HALO-C-P HOR-HALO-B-L HOR-HALO-B-P HOR-HALO-R-L HOR-HALO-R-P HOR-HALO-G-L HOR-HALO-G-P HOR-GT-SQ HOR-GT-SQD HOR-GT-C HOR-GT-CD HOR-RECESS DERWENT-W DERWENT-LL DERWENT-CH DERWENT-BR TAMAR-W TAMAR-LL TAMAR-CH TAMAR-BR THAMES-W THAMES-LL THAMES-CH THAMES-BR |
Our Lumaax is the highest performing diffuser on the market in comparison to the competition. When compared to the market standard opal, the Lumaax offers up to a 92% increase in Light Output Ratio in addition to the superior light diffusion. Together with the elimination of hotspots and glare caused by the LED boards, the diffuser subsequently increases the application range available for our enclosures. In addition to the reduction of dangerous glare, the Lumaax enables our customers to reduce their circuit watts as a result of its superior performance.
TRANSMISSION RATE
(Tested with Tridonic components)
Luminaire Assembly Service
Here at Penhale Quantock Ltd, we offer a luminaire assembly service to our customers. In addition to supplying our products as empty housings, our team can assemble the enclosures into filled luminaires. Moreover, we can assemble your luminaire’s straight from the machine, with your components, to your specification.
As members of the LIA, you can be assured that our production processes, together with our quality management system, have been designed to ensure the products you receive are of the highest quality.
